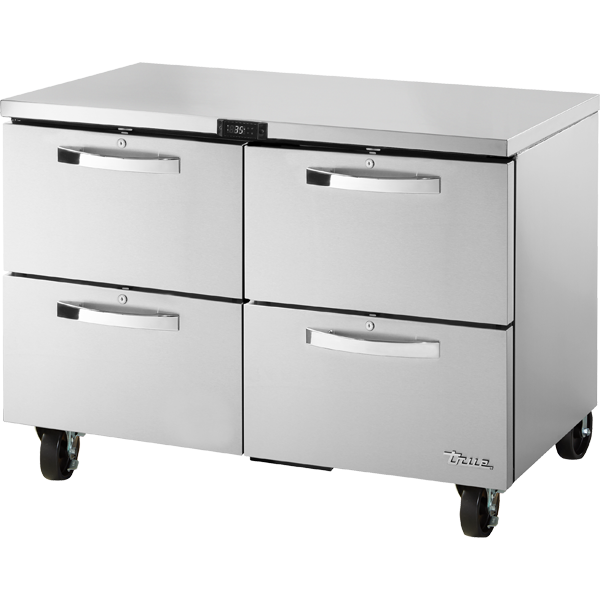

True Refrigeration TUC-48D-4-HC~SPEC3

$8,140.97

SKU: TUC-48D-4-HC~SPEC3

💰 Financing Available through Approve Payments

We offer flexible financing options to help you get the equipment you need now and pay over time. Fast approval and simple application process.

Apply for Financing

Tag:

Guaranteed safe checkout

Product Specifications Highlighted Features Downloads & Resources Reviews

Specifications
Model	TUC-48D-4-HC~SPEC3
Drawer Count	4
Weight (lbs)	330
Weight (KG)	150

Dimensions	Imperial	Metric
Width	48–3/8	1229
Depth	29–1/8	740
Height	29–3/4	756
CORD LENGTH	10	3.05

Electrical
Amps	3.0
Voltage	115/60/1
NEMA Configuration	5-15P

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

Design ▼

True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace.

Refrigeration System ▼

Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
Energy efficient, factory balanced refrigeration system with guided airflow to provide uniform product temperatures.
High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
Condensing unit access in back of cabinet, slides out for easy maintenance.

Cabinet Construction ▼

Exterior - stainless steel front, top, sides, and back.
Interior - Stainless steel liner. Stainless steel floor with coved corners.
Insulation - entire cabinet structure and drawer facings are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).

Drawers ▼

Stainless steel exterior drawer facings and liners. Stainless steel drawer frames.
Drawer locks standard.
Each drawer fitted with heavy duty all metal working spec handle.
Heavy-duty stainless steel drawer slides and rollers. Removable without tools for easy cleaning.
Magnetic drawer gaskets of one piece construction, removable without tools for ease of cleaning.
Drawers will support a wide variety of incremental pan size configurations; divider bars available.
Each drawer accommodates one (1) full size 12"L x 18"W x 6"D (305 mm x 458 mm x 153 mm) food storage box or one 1/3 size and one 1/2 size pan (sold separately).

Model Features ▼

Evaporator is epoxy coated to eliminate the potential of corrosion.
Counter-Top front is flush with front of drawers.
Electronic temperature control with digital display.
Spec Series® logo.
NSF/ANSI Standard 7 compliant for open food product.

Electrical ▼

Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
NEMA-5-15R

Optional Features/accessories Upcharge And Lead Times May Apply. ▼

220-240V/50-60Hz
208 - 230V / 60 Hz.
6" (153 mm) standard legs.
6" (153 mm) seismic/flanged legs.
2–1/2" (64 mm) diameter castors.
Single overshelf.
Double overshelf.
TUC-27 Stacking collar.
Cutting boards provided by others. Requires "L" brackets. Field installed brackets provided by True (contact factory).
ADA compliant models with 34" (864 mm) work surface height.
Low profile models with 31–7/8" (810 mm) work surface height.
Heavy-duty 16-gauge top

True’s undercounter units are designed with enduring quality that protects your long term investment. Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace. Oversized, environmentally friendly (134A) forced-air refrigeration system holds 33°F to 38°F (.5°C to 3.3°C). Stainless steel front, countertop, sides, and back. Interior – Stainless steel liner. Stainless steel floor with coved corners. Heavy duty 20 gauge drawers. Heavy duty all metal working spec door handle. Counter-Top front is flush with front of drawers.
