| Specifications | |
|---|---|

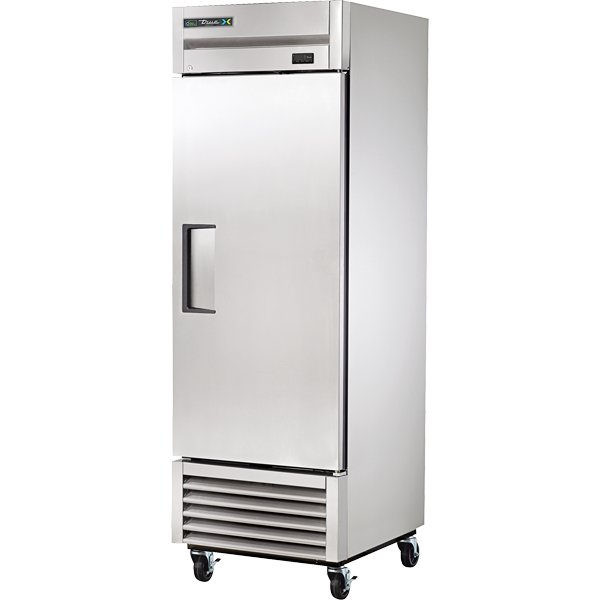

| Model | TS-23F-FLX-HC |
| Door Count | 1 |
| Shelf Count | 3 |
| Weight (lbs) | 295 |
| Weight (KG) | 134 |
| Dimensions | Imperial | Metric |
|---|---|---|
| Width | 27 | 686 |
| Depth | 29–1/2 | 750 |
| Height | 78–3/8 | 1991 |
| CORD LENGTH | 10 | 3.05 |
| Electrical | |
|---|---|
| Amps | 3.2 |
| Voltage | 115/60/1 |
| NEMA Configuration | 5-15P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
Design
- True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace.
Refrigeration System
- Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
- High capacity, factory balanced refrigeration system that maintains cabinet temperatures of -10°F (-23.3°C) to 38°F (3.3°C).
- Easily converts from freezer to refrigerator with the flip of a switch.
- State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
- Bottom mounted condensing unit positioned for easy cleaning. Compressor runs in coolest and most grease free area of the kitchen. Allows for storage area on top of unit.
Cabinet Construction
- Exterior - Stainless steel door, front and sides. Corrosion resistant GalFan coated steel back.
- Interior - Stainless steel liner and floor.
- Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
- Frame rail fitted with 4" (102 mm) diameter stem castors - locks provided on front set.
Door
- Stainless steel exterior with clear aluminum liner to match cabinet interior. Door extend full width of cabinet shell. Door lock standard.
- Lifetime guaranteed recessed door handle. Door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.
- Positive seal self-closing door. Lifetime guaranteed door hinges and torsion type closure system.
- Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.
Shelving
- Three (3) adjustable, heavy duty PVC coated wire shelves 22–7/8"L x 23–1/4"D (582 mm x 591 mm). Four (4) chrome plated shelf clips included per shelf.
- Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.
Lighting
- Interior lighting - safety shielded. Lights activated by rocker switch mounted above door.
Model Features
- Exterior temperature display.
- Evaporator is epoxy coated to eliminate the potential of corrosion.
- Rear airflow guards prevent product from blocking optimal airflow.
- NSF/ANSI Standard 7 compliant for open food product.
Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
- 115/60/1 NEMA-5-15R
Optional Features/accessories Upcharge And Lead Times May Apply.
- 6" (153 mm) standard legs.
- 6" (153 mm) seismic/flanged legs.
- 2–1/2" (64mm) castors.
- Alternate door hinging (factory installed).
- Novelty baskets.
- Additional shelves.
True’s TS series is the choice for the exclusive stainless steel commercial application.
High capacity, factory balanced refrigeration system that maintains cabinet temperatures of -10°F (-23.3°C) to 38°F (3.3°C). True’s solid door reach-in’s are designed with enduring quality that protects your long term investment. Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace. Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP). Stainless steel interior and exterior front, sides and door. The very finest stainless with higher tensile strength for fewer dents and scratches. Matching aluminum back. LED interior lighting provides more even lighting throughout the cabinet. Safety shielded. Adjustable, heavy duty PVC coated shelves. Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system. Automatic defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.
Bottom mounted units feature:
- ”No stoop” lower shelf.
Storage on top of cabinet.
Compressor performs in coolest, most grease free area of kitchen.
Easily accessible condenser coil for cleaning.
