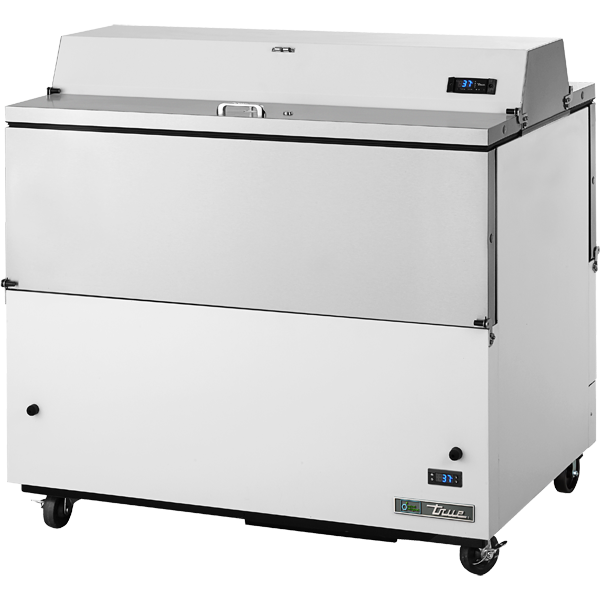

True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in an attractive, durable school milk cooler. Dual sided for convenient access to product from both sides of unit. Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP). High capacity, factory balanced, forced-air refrigeration system maintains milk temperatures of 33°F to 38°F (.5°C to 3.3°C). Colder holding temperatures provide better tasting milk, increased sales and less product waste. Exterior – non-peel or chip white powder coated cold rolled steel front, sides, back and top; durable and permanent. All stainless steel self-service doors feature convenient drop front and "hold-open" flip-up top. Standard with door locks. Interior – attractive, clear coated aluminum liner with reinforced, stainless steel floor. Standard with heavy duty floor racks and convenient clean out drain. Designed to hold Twelve 13"L x 13"D x 11–1/8"H (331 mm x 331 mm x 296 mm) milk crates. Entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
| Specifications |
|
| Model |
TMC-49-DS-HC |
| Door Count |
4 |
| Floor Racks |
3 |
| Weight (lbs) |
395 |
| Weight (KG) |
180 |
| Crates |
12 |
| Dimensions |
Imperial |
Metric |
| Width |
49 |
1245 |
| Depth |
33 |
839 |
| Height |
41–5/8 |
1058 |
| Width |
13 |
331 |
| Depth |
13 |
331 |
| Height |
11–5/8 |
296 |
| CORD LENGTH |
9 |
2.74 |
| Electrical |
|
| Amps |
2.7 |
| Voltage |
115/60/1 |
| NEMA Configuration |
5-15P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
DiseÑo
▼
Sistema De RefrigeraciÓn
▼
- Sistema auto contenido diseñado en fábrica que utiliza el refrigerante de hidrocarbono ecológico R290 que tiene un potencial de destrucción de la capa de ozono de cero (ODP) y muy bajo potencial de calentamiento global de tres (3) (GWP).
-
- Motores ventiladores del evaporador y condensador de primera clase, accionados electrónicamente. Los motores ECM operan con una alta eficiencia y mueven un mayor volumen de aire, lo cual produce menos calor, reduce el consumo de energía y provee una gran confiabilidad en el motor.
-
Construccion Del Gabinete
▼
- Interior - atractivo aluminio aprobado por NSF con marco reforzado y piso de acero inoxidable. Parrillas para el piso extra fuertes estándar.
- Interior - atractivo aluminio aprobado por NSF con marco reforzado y piso de acero inoxidable. Parrillas para el piso extra fuertes estándar.
Puertas
▼
Caracteristicas Del Modelo
▼
Especificaciones ElÉctricas
▼
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
- NEMA-5-15R
