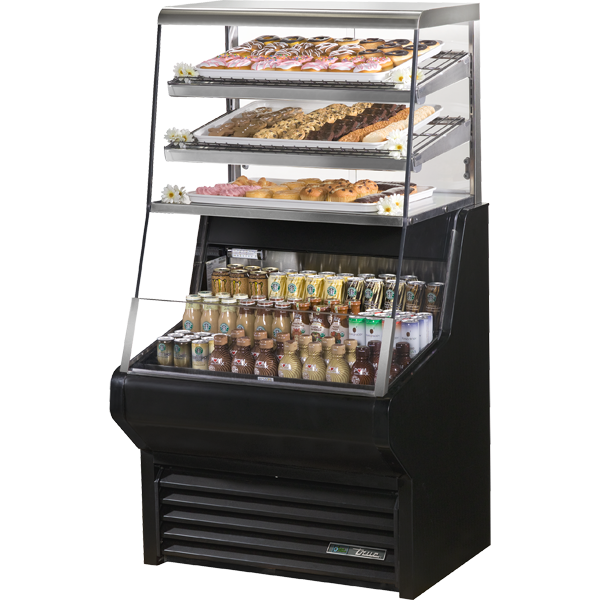

True’s air curtain merchandisers are designed with enduring quality that protects your long term investment. True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures and lower utility costs in a convenient spot merchandiser for packaged food and beverage. Uniquely sized for placement in an variety of popular impulse merchandising locations. Factory engineered, self-contained refrigeration system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP). Energy efficient, factory balanced, refrigeration system holds 35°F to 40°F (1.6°C to 4.4°C). Exclusive reversing condenser fan motors. Fan motors reverse during defrost off cycles to help keep condenser coil free from dirt, dust and debris. Keeping coils clean optimizes the unit’s performance providing colder holding temperatures and increased energy efficiency. Regularly scheduled thorough cleaning of coils still recommended. Exterior – non-peel or chip black powder coated steel; durable and permanent. Interior – attractive, black aluminum interior liner with stainless steel floor. Air curtain top provides fast, easy access to product while maximizing attention to merchandising. Entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
| Specifications |
|
| Model |
THAC-36DG-HC-LD |
| Shelf Count |
5 |
| Dimensions |
Imperial |
Metric |
| Width |
36–1/8 |
918 |
| Depth |
30–1/8 |
766 |
| Height |
67–1/8 |
1705 |
| CORD LENGTH |
6.5 |
1.98 |
| Electrical |
|
| Amps |
5.3 |
| Voltage |
115/60/1 |
| NEMA Configuration |
5-15P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
Design
▼
- Designed using the highest quality materials and components to provide the user with colder product temperatures and lower utility costs in an attractive merchandiser that brilliantly displays package food and beverage.
Refrigeration System
▼
- Factory engineered, self-contained refrigeration system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
- Time initiated, time terminated off cycle defrost system
- Extra large evaporator coil balanced with higher horsepower compressor and large condenser; maintains cabinet temperatures of 35°F to 40°F (1.6°C to 4.4°C).
- Sealed, self-lubricated evaporator fan motor(s) and larger fan blades give True merchandisers a more efficient, low velocity, high volume airflow design, colder holding temperatures and faster recovery in high use situations.
- Condensing unit accessed from front of cabinet, slides out for easy maintenance.
- Exclusive reversing condenser fan motor. Fan motor reverses during defrost off cycles to help keep condenser coil free from dirt, dust and debris. Keeping coils clean optimizes the unit’s performance providing colder holding temperatures and increased energy efficiency. Regularly scheduled thorough cleaning of coils still recommended.
Cabinet Construction
▼
- Exterior - non-peel or chip black powder coated steel; durable and permanent.
- Interior - attractive, black aluminum liner with stainless steel floor.
- Cabinet fitted with leg levelers.
- Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- Interior - attractive, black aluminum liner with stainless steel floor.
Shelving
▼
- Refrigerated Section has three (3) level tiered stainless steel floor. Non-Refrigerated "Dry Goods" section has two (2) adjustable, heavy duty wire shelves 31–5/8"L x 16–3/4"D (804 mm x 426 mm). Bottom of "Dry Goods" section can also be used for storage 33"L x 20"D (839 mm x 508 mm).
DRY AREA
Lighting
▼
- LED interior lighting, safety shielded.
Model Features
▼
- Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged and bottled product.
Electrical
▼
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. Cord and plug set included.
- NEMA-5-15R
Optional Features/accessories Upcharge And Lead Times May Apply.
▼
- White exterior.
- Stainless exterior.
- 2" (51 mm) diameter castors
- Bumper guards.
- Night cover.
- Pressure safety control.
