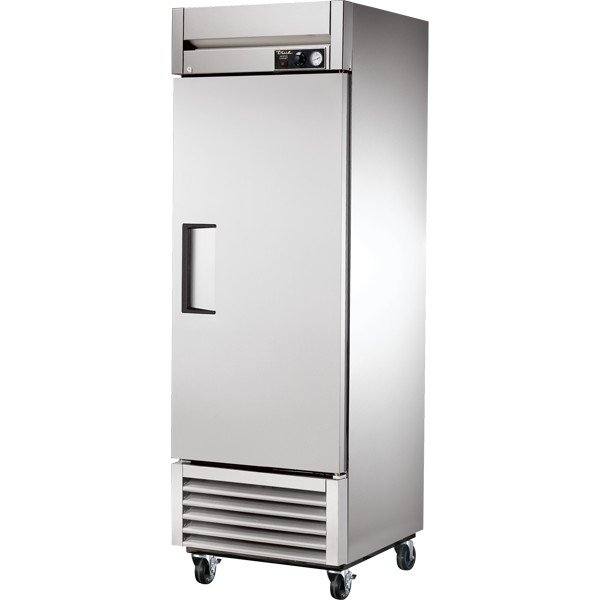

True Refrigeration TH-23

$5,898.64

SKU: TH-23

💰 Financing Available through Approve Payments

We offer flexible financing options to help you get the equipment you need now and pay over time. Fast approval and simple application process.

Apply for Financing

Tag:

Guaranteed safe checkout

Product Specifications Highlighted Features Downloads & Resources Reviews

Specifications
Model	TH-23
Door Count	1
Shelf Count	3
Weight (lbs)	260
Weight (KG)	118

Dimensions	Imperial	Metric
Width	27	686
Depth	29–1/2	750
Height	78–3/8	1991
CORD LENGTH	9	2.74

Electrical
Amps	7.8
Voltage	115/60/1
NEMA Configuration	5-15P

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

Design ▼

True’s solid door reach-in heated cabinets are designed with enduring quality that protects your long term investment.

Heater System ▼

Cabinet is designed to provide holding temperatures of 80°F to 180°F (26.6°C to 82.2°C). Heating system controlled by exterior on/off switch and temperature control dial.
Stainless steel, tube heating element for uniform generation of electric heat. Cabinet comes with a total of 850 watts. Heating element sheathed for corrosion resistance.Low-velocity fans to assure even temperature distribution throughout the cabinet.

Cabinet Construction ▼

Exterior - Stainless steel front. Anodized quality aluminum ends. Corrosion resistant GalFan coated steel back.
Interior- Stainless steel interior liner and floor.
Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Welded, heavy duty steel frame rail, black powder coated for corrosion protection.

Door ▼

Stainless steel exterior and liner. Door opens within cabinet dimension. Door lock standard.
Lifetime guaranteed recessed door handle standard. Door fitted with 12" long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.
Positive seal self-closing door. Lifetime guaranteed door hinges and torsion type closure system.
Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.

Shelving ▼

Three (3) adjustable, heavy duty chrome plated wire shelves 21–7/16"L x 23–1/4"D (545 mm x 591 mm). Four (4) chrome plated shelf clips included per shelf.
Anodized aluminum shelf support pilasters. Shelves are adjustable on 1/2" (13 mm) increments.

Lighting ▼

Interior lighting; safety shielded.

Model Features ▼

12"L x 20"W x 1"D (305 mm x 508 mm x 26 mm) humidity pan standard for contents requiring high humidity.
True heated cabinets are designed to hold warm baked or cooked food. Cabinets are not designed to heat ambient or cold products.
NSF/ANSI Standard 4 compliant for open food product.

Electrical ▼

Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
NEMA-5-15R

Optional Features/accessories Upcharge And Lead Times May Apply. ▼

6" (153 mm) standard legs.
6" (153 mm) seismic/flanged legs.
2–1/2" (64mm) castors.
Alternate door hinging (factory installed).
Additional shelves.
Half door bun tray racks. Each holds up to eleven 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately).
Full door bun tray rack. Holds up to twenty-two 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately).

Provides cabinet holding temperature of 80°F to 180°F (26.6°C to 82.2°C). Internal fan provides low velocity, forced-air heat distribution to assure even temperatures throughout the cabinet. Stainless steel, tube heating element for uniform generation of electric heat. Cabinet comes with a total of 850 watts. Heating element sheathed for corrosion resistance. Exterior – stainless steel front and door. Anodized quality aluminum ends. Corrosion resistant GalFan coated steel back. Interior – Stainless steel interior liner and floor. Cabinet comes standard with three (3), adjustable, heavy duty chrome plated wire shelves. Entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
