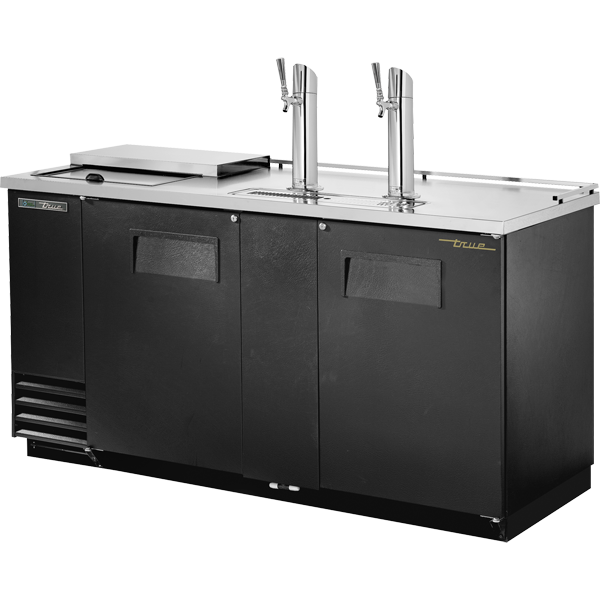

True’s direct draw beer dispensers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service. Easy to reach refrigerated storage area under slide top for chilled product or glasses. High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C). Exterior – Black, powder coated cold-rolled steel with stainless steel countertop. Interior – Stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls. NSF/ANSI Standard 7 compliant for packaged or bottled product. Adjustable, heavy duty PVC coated wire shelf. Two (2) 3" (77 mm) diameter stainless steel insulated beer columns. Cold air is directed into beer columns to reduce foaming and maximize draft beer profits. Anodized aluminum glass rail provides convenient storage for glasses on top.


| Specifications |
|
| Model |
TDD-3CT-HC |
| Door Count |
2 |
| Shelf Count |
1 |
| Weight (lbs) |
385 |
| Weight (KG) |
175 |
| Dimensions |
Imperial |
Metric |
| Width |
69–1/8 |
1756 |
| Depth |
27–1/8 |
689 |
| Height |
38–1/2 |
978 |
| CORD LENGTH |
7 |
2.13 |
| Electrical |
|
| Amps |
2.8 |
| Voltage |
115/60/1 |
| NEMA Configuration |
5-15P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
DiseÑo
▼
Sistema De RefrigeraciÓn
▼
Construccion Del Gabinete
▼
Puertas
▼
Caracteristicas Del Modelo
▼
Especificaciones ElÉctricas
▼
- Unidad completamente pre-cableada en fábrica y lista para ser conectada a una fuente de 115/60/1 fase y 15 amperios.
- 115/60/1 NEMA-5-15R
