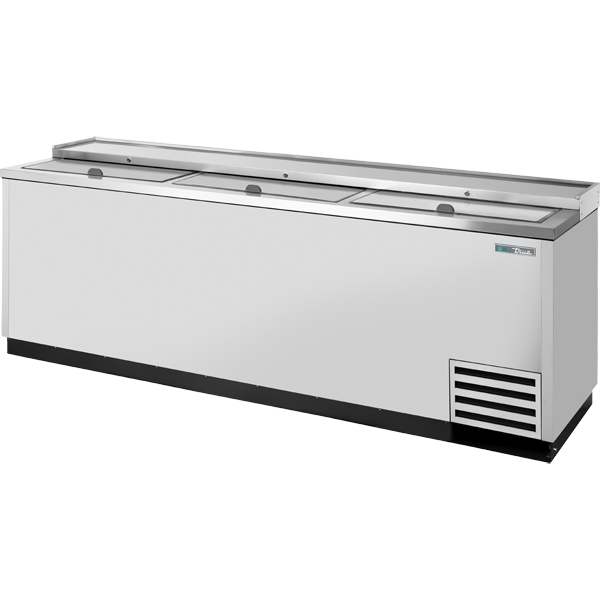

True’s horizontal bottle coolers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service. Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP). Forced-air cooling. Positively guided airflow cools bottles on top first. Evaporator coil virtually runs length of cooler for balanced temperatures throughout the cabinet. Exterior – all stainless steel exterior, countertop and lids. Interior – long lasting, heavy duty galvanized steel. NSF/ANSI Standard 7 approved for packaged and bottled product. Evaporator is epoxy coated to eliminate the potential of corrosion. Entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP). Heavy duty, 10 mil thick pure grade PVC coated adjustable bin dividers.
| Specifications |
|
| Model |
TD-95-38-S-HC |
| Lids |
3 |
| Weight (lbs) |
470 |
| Weight (KG) |
214 |
| Capacity |
|
| 12 oz Cans |
55 Cases |
| Dimensions |
Imperial |
Metric |
| Width |
95–3/8 |
2423 |
| Depth |
26–5/8 |
677 |
| Height |
33–3/8 |
848 |
| CORD LENGTH |
7 |
2.13 |
| Electrical |
|
| Amps |
3.1 |
| Voltage |
115/60/1 |
| NEMA Configuration |
5-15P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
DiseÑo
▼
Sistema De RefrigeraciÓn
▼
Construccion Del Gabinete
▼
Caracteristicas Del Modelo
▼
Especificaciones ElÉctricas
▼
- Unidad completamente pre-cableada en fábrica y lista para ser conectada a una fuente de 115/60/1 fase y 15 amperios. Juego de cable y enchufe incluidos.
- 115/60/1 NEMA-5-15R
