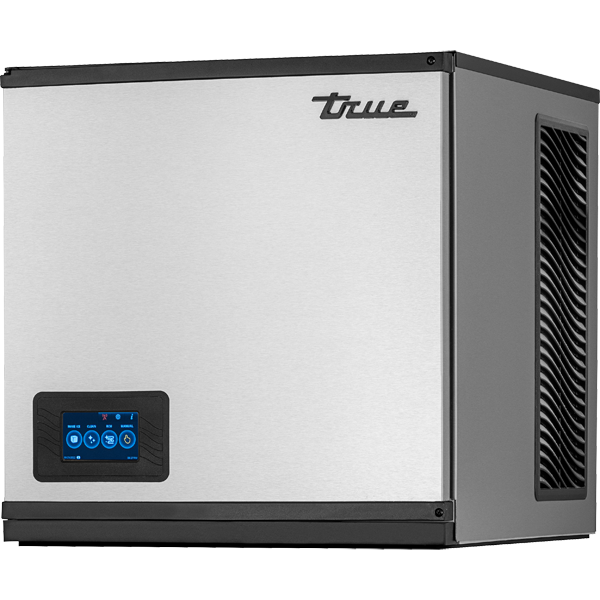

True Refrigeration TCIM-522-LA1-A-T-3

$4,218.00

SKU: TCIM-522-LA1-A-T-3

High-efficiency, patented TrueNcapsuL8® evaporator, fully insulated and powered by an eco-friendly R290 refrigeration system, delivers faster cycles, cleaner ice, and maximum output (no harvest assist required). Exceeds ENERGY STAR® standards by up to 37% for superior energy savings. Sealed...

Go to wishlist

💰 Financing Available through Approve Payments

We offer flexible financing options to help you get the equipment you need now and pay over time. Fast approval and simple application process.

Apply for Financing

Tag:

Guaranteed safe checkout

Product Specifications Highlighted Features Downloads & Resources Reviews

Specifications
Model	TCIM-522
Weight (lbs)	162
Weight (KG)	74
Production @ 70/50	550 lbs (250 kg)
Production @ 90/70	485 lbs (220 kg)

Dimensions	Imperial	Metric
Width	22	560
Depth	24	610
Height	22	560

Electrical
Min. Circuit Ampacity	15
Voltage	115/60/1

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

Evaporator Plate ▼

High-efficiency, patented TrueNcapsuL8® evaporator, fully insulated and powered by an eco-friendly R290 refrigeration system, delivers faster cycles, cleaner ice, and maximum output (no harvest assist required).
Exceeds ENERGY STAR® standards by up to 37% for superior energy savings.

Refrigeration System ▼

Eco-friendly R290 refrigerant: 4.3 oz (122 g).
High and low pressure transducers for gauge-free servicing.
Wide operating range: 35°F to 110°F ambient.
Ultra-quiet fan operation.
One-touch cleaning.

Construction ▼

TrueTech® clear-coated exterior offers superior corrosion and fingerprint resistance. Black powder-coated stainless steel top panel with a galvanized steel rear panel. TrueGuard™ antimicrobial protection in all molded components, bin door, and liner.

High-efficiency, patented TrueNcapsuL8® evaporator, fully insulated and powered by an eco-friendly R290 refrigeration system, delivers faster cycles, cleaner ice, and maximum output (no harvest assist required). Exceeds ENERGY STAR® standards by up to 37% for superior energy savings. Sealed evaporator design helps inhibit mold, bacteria, and biofilm growth. TrueGuard™ antimicrobial protection in all molded components, bin door, and liner. TrueZone® Photoplasma + UVGI inhibit microbial growth and biofilm, reducing cleaning by up to 75%. TrueTouch® 4.3” smart touchscreen—the largest in the industry—features intuitive navigation, predictive diagnostics, and simple system status (no cryptic codes). Includes ice level monitoring, simple touch controls, visual and audible alarms with push notifications, and programmable ice production scheduling. Time-of-Flight™ real-time ice level monitoring—no thermostats required. Easy-to-remove air filter and RCU technology.
