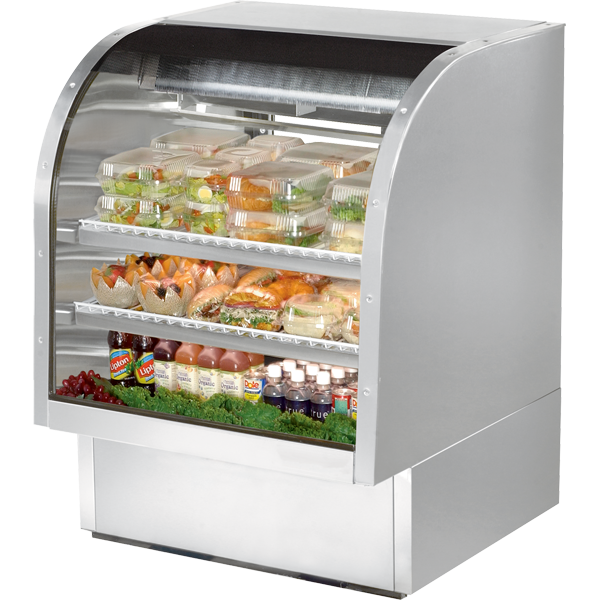

True’s curved glass deli case combines efficient, high volume merchandising and exceptional refrigeration with an elegant curved glass front for sophisticated presentation of deli products. High humidity gravity coil refrigeration system maintains 38°F to 40°F (3.3°C to 4.4°C) for the freshest display of meats, cheeses and deli products. Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP). Cabinet is NSF/ANSI Standard 7 certified to hold open food product. Insulated double pane curved front glass provides maximum insulation value for greater efficiency and energy savings. Both panes are tempered for safety. Two (2) adjustable, lighted, cantilevered PVC coated shelves. LED lights are low UV emitting to enhance product appearance and increase shelf life. All stainless steel interior and exterior.
| Specifications |
|
| Model |
TCGG-36-S-HC-LD |
| Door Count |
2 |
| Shelf Count |
2 |
| Weight (lbs) |
400 |
| Weight (KG) |
182 |
| Dimensions |
Imperial |
Metric |
| Width |
36–1/4 |
921 |
| Depth |
35–1/4 |
896 |
| Height |
47–3/4 |
1213 |
| CORD LENGTH |
9 |
2.74 |
| Electrical |
|
| Amps |
3.3 |
| Voltage |
115/60/1 |
| NEMA Configuration |
5-15P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
DiseÑo
▼
Sistema De RefrigeraciÓn
▼
Construccion Del Gabinete
▼
Puertas
▼
Caracteristicas Del Modelo
▼
Especificaciones ElÉctricas
▼
- Unidad completamente pre-cableada en fábrica y lista para ser conectada a una fuente de 115/60/1 fase y 15 amperios. Juego de cable y enchufe incluidos.
- NEMA-5-15R
