| Specifications | |
|---|---|

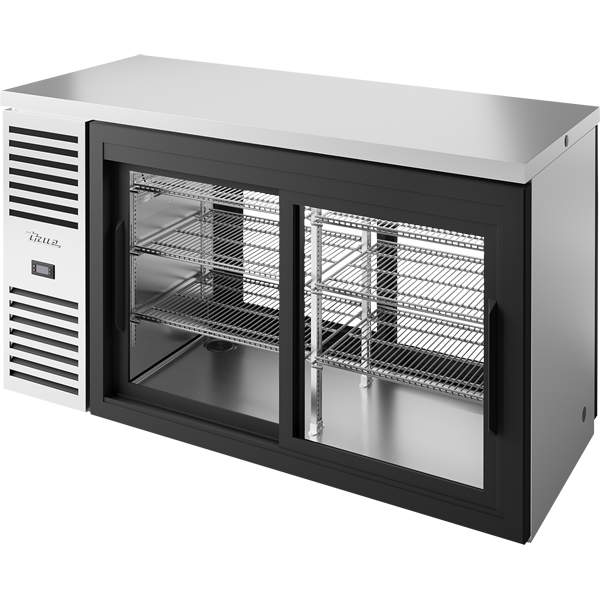

| Model | TBR60-PTSZ1-L-S-11-11-1 |
| Door Count | 2 |
| Shelf Count | 6 |
| Capacity | |
|---|---|
| 1/2 Barrels | 2 |
| 1/6 Barrels | 9 |
| 12 oz Cans | 88 6-pks |
| Dimensions | Imperial | Metric |
|---|---|---|
| Width | 60 | 1524 |
| Depth | 24–7/8 | 631 |
| Height | 34–3/4 | 881 |
| CORD LENGTH | 10 | 3.04 |
| Electrical | |
|---|---|
| Amps | 3.2 |
| Voltage | 115/60/1 |
| NEMA Configuration | 5-15P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
Refrigeration System
- Factory engineered, self-contained, capillary tube system
- Environmentally friendly R290 hydrocarbon refrigerant
- Forced air refrigeration system which maintains 33°F to 38°F (.5°C to 3.3°C) product temperatures
- True’s self-cleaning RCU technology eliminates the need to clean the condenser coil, reduces energy consumption and helps maintain the coldest temperatures and freshest product.
Cabinet Construction
- Exterior: Black, powder coated cold-rolled steel with stainless steel countertop
- Interior: Stainless steel floor and sides with ABS plastic ceiling
- Insulation: Entire cabinet is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion and zero global warming potential
Doors
- Low-E, double pane thermal insulated glass doors with black powder coated door frames
- Self-closing doors. Counter-balanced weight system for smooth, even, positive closing.
Shelving
- Six (6) adjustable, gray PVC coated wire shelves. 21–1/4"W x 18"D (540 mm x 458 mm). Four (4) chrome plated shelf clips included per shelf.
- Aluminum shelf support pilasters. Shelves are adjustable on 1/2" (13 mm) increments.
Model Features
- NSF/ANSI Standard 7 compliant for open food
- UL approved for outdoor use
- Electronic temp control with exterior digital display
- Three (3) access ports standard (see drawing for locations)
Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
- 115/60/1 NEMA-5-15R
Optional Features/accessories Upcharge And Lead Times May Apply.
- TruLumina® 14-Color LED lighting
- Castors: 7/8" (23 mm) rollers, 2" (51mm), 3" (77mm), 4" (102mm), 5" (127mm) castors
- 6" (153mm) legs
- 6" (153mm) seismic legs
- Rachet locks
- Alternative temperature zones available (contact factory)
R290 Hydrocarbon refrigerant Temperatures of 33°F to 38°F (.5°C to 3.3°C) Exterior: Black powder coated cold rolled steel with stainless steel countertop Interior: Stainless steel Self-cleaning RCU technology White LED interior lighting NSF/ANSI standard 7 compliant for open food product UL Rated for outdoor use Three (3) interior access ports Field reversible doors
