R290 Hydrocarbon refrigerant. Exterior: Stainless exterior with stainless steel countertop. Interior: Stainless steel floor with heavy gauge galvanized steel walls. Each Door fitted with 12″ (305mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment. True’s self-cleaning RCU technology eliminates the need to clean the condenser coil, reduces energy consumption and helps maintain the coldest temperatures and freshest product. LED interior lighting. NSF/ANSI Standard 7 compliant for the storage and/or display of packaged or bottled product. Recommended 1″ clearance side and back
| Specifications |
|
| Model |

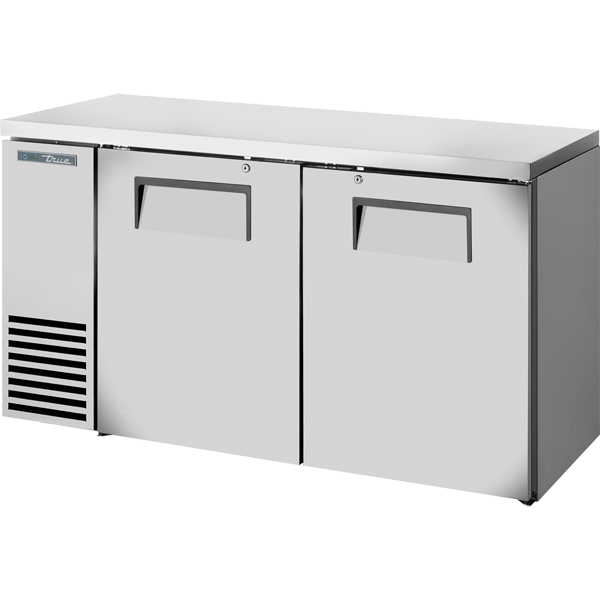

TBB24-60-2S-Z1-SFT-S-1 |
| Door Count |
2 |
| Shelf Count |
4 |
| Weight (lbs) |
345 |
| Weight (KG) |
167 |
| Capacity |
|
| 1/2 Barrels |
2 |
| 12 oz Cans |
89 6-pks |
| Dimensions |
Imperial |
Metric |
| Width |
60–1/8 |
1525 |
| Depth |
24–7/8 |
632 |
| Height |
34–3/4 |
882 |
| CORD LENGTH |
10 |
3.05 |
| Electrical |
|
| Amps |
3.2 |
| Voltage |
115/60/1 |
| NEMA Configuration |
5-15P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
Refrigeration System
▼
- Factory engineered, self-contained, capillary tube system.
- Environmentally friendly R290 hydrocarbon refrigerant.
- Forced air refrigeration system which maintains 35°F (1.7°C) product temperature.
- True’s self-cleaning RCU technology eliminates the need to clean the condenser coil, reduces energy consumption and helps maintain the coldest temperatures and freshest product.
Cabinet Construction
▼
- Exterior: Stainless exterior with stainless steel countertop.
- Interior: Stainless steel floor with heavy gauge galvanized steel walls.
- Insulation: Entire cabinet is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion and zero global warming potential.
- Base fitted with leg levelers.
Doors
▼
- Galvanized steel door liner.
- Each Door fitted with 12" (305mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.
- Positive seal doors.
- Glavanized steel door liner.
- Door locks standard.
Shelving
▼
- Four (4) adjustable, gray PVC coated wire shelves. 21–11/16" W x 18" D (551 mm x 458 mm). Four (4) chrome plated shelf clips included per shelf.
- Aluminum shelf support pilasters. Shelves are adjustable on 1/2" (13 mm) increments.
Lighting
▼
Model Features
▼
- Electronic control.
- UL approved for outdoor use.
- NSF/ANSI Standard 7 compliant for the storage and/or display of packaged or bottled product.
Electrical
▼
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
- 115/60/1 NEMA-5-15R
Optional Features/accessories Upcharge And Lead Times May Apply.
▼
- Castors 7/8" (23mm), 2"D (51mm), 3"D (77mm), 4"D (102mm), 5"D (127mm) castors
- 6"H (153mm) legs
- 6"H (153mm) seismic legs
- Additional shelves
- One liter or wine bottle organizers
- Bottle Organizers (available in black or gray)
