Oversized, factory balanced, refrigeration system holds 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation. “Low-E”, double pane thermal insulated glass. Designed to accept roll-in racks (inboard castors) with maximum dimensions of 27"L x 29"D x 66"H (686 mm x 737 mm x 1677 mm)(supplied by others). One (1) heavy gauge stainless steel ramp standard. Three (3) lifetime guaranteed, cam-lift hinges. Full 180° open capability with a stay open feature at 120°. Lifetime guaranteed bolt style door locks standard. Entire cabinet structure and solid door are foamed-in-place using Ecomate. A high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
| Specifications |
|
| Model |

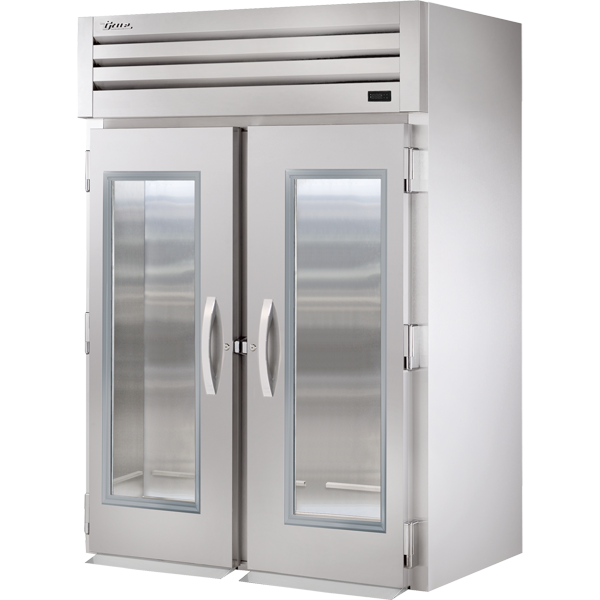

STR2RRI-2G-HC |
| Door Count |
2 |
| Weight (lbs) |
760 |
| Weight (KG) |
345 |
| Dimensions |
Imperial |
Metric |
| Width |
68 |
1728 |
| Depth |
34–3/4 |
883 |
| Height |
83–3/4 |
2128 |
| CORD LENGTH |
9 |
2.74 |
| Electrical |
|
| Amps |
9.7 |
| Voltage |
115/60/1 |
| NEMA Configuration |
5-15P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
Design
▼
- True’s glass door roll-ins are designed with enduring quality that protects your long term investment.
- Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs and exceptional food safety.
Refrigeration System
▼
- Factory engineered, self-contained, expansion valve (TXV) system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
- High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
- State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
- Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity.
-
Cabinet Construction
▼
- Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- Designed to accept roll-in racks (inboard castors) with maximum dimensions of 27"L x 29"D x 66"H (686 mm x 737 mm x 1677 mm)(supplied by others).One (1) heavy gauge stainless steel ramp.
Doors
▼
- “Low-E”, double pane thermal insulated glass.
- Lifetime guaranteed bolt style door locks standard.
- Lifetime guaranteed heavy duty all metal working door handle.
- Positive seal self-closing door with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, Three (3) per door section.
- Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.
Lighting
▼
- LED interior lighting, safety shielded.
Model Features
▼
- Exterior digital temperature display, available with either °F or °C .
- Evaporator epoxy coated to eliminate the potential of corrosion
- Interior bumpers protect cabinet walls from abuse caused by roll-in carts.
- NSF/ANSI Standard 7 compliant for open food product.
Electrical
▼
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
- 115/60/1 NEMA-5-15R
Optional Features/accessories Upcharge And Lead Times May Apply.
▼
- Stainless back. (STR, STA, STG)
- Hasp lock.
- Field reversible hinge.
- Security package.
