One (1) stainless steel (for corrosion resistance),heating element per section for uniform generation of electric heat. Cabinet comes with a total of 3000 watts. 5" (127 mm) diameter plate castors – locks provided on front set. Three (3) Heavy duty, chrome plated, wire shelves per section. Entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
| Specifications |
|
| Model |

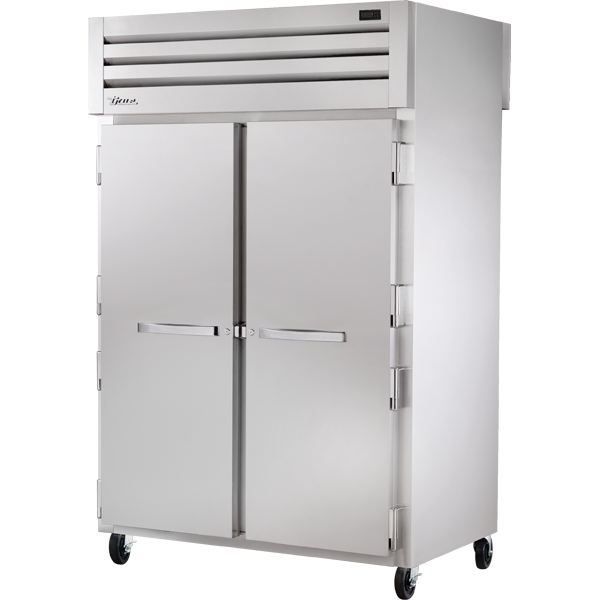

STG2HPT-2S-2S |
| Door Count |
2 fr / 2 bk |
| Shelf Count |
6 |
| Weight (lbs) |
565 |
| Weight (KG) |
257 |
| Dimensions |
Imperial |
Metric |
| Width |
52–5/8 |
1337 |
| Depth |
36–1/8 |
918 |
| Height |
77–3/4 |
1975 |
| CORD LENGTH |
9 |
2.74 |
| Electrical |
|
| Voltage |
208-240/60/1 |
| NEMA Configuration |
5-15P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
Design
▼
- True’s solid door pass-thru’s are designed with enduring quality that protects your long term investment.
Heater System
▼
- Cabinet designed to provide holding temperatures of 140°F to 180°F (60°C to 82.2°C). Heating system controlled by exterior on/off switch and electronic temperature control.
- One (1) stainless steel (for corrosion resistance),heating element per section for uniform generation of electric heat. Cabinet comes with a total of 3000 watts.
- Manually controlled vent located on top of the cabinet for positive humidity control.
Cabinet Construction
▼
- Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Doors
▼
- Lifetime guaranteed bolt style door lock standard.
- Lifetime guaranteed heavy duty all metal working door handles.
- Positive seal self-closing doors with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, four (4) per door section.
- Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
Shelving
▼
- Three (3) Heavy duty, chrome plated, wire shelves per section.
Model Features
▼
- Exterior digital temperature display, available with either °F or °C .
- Designed to hold warm baked or cooked food. Cabinet is not designed to heat ambient or cold product.
- NSF/ANSI Standard 4 compliant for open food product.
Electrical
▼
- Unit comes with 3 feed wires (including ground) to be hardwired at installation site to a 208-240/60 Hz. single phase, 20 amp dedicated circuit.
Optional Features/accessories Upcharge And Lead Times May Apply.
▼
- 6" (153 mm) standard legs.
- 6" (153 mm) seismic/flanged legs.
- 6" (153 mm) stainless steel legs.
- Hasp lock.
- Additional shelves.
- Security package.
- 3–1/4" (83mm) castors
SHELVING KIT OPTIONS
