| Specifications | |
|---|---|

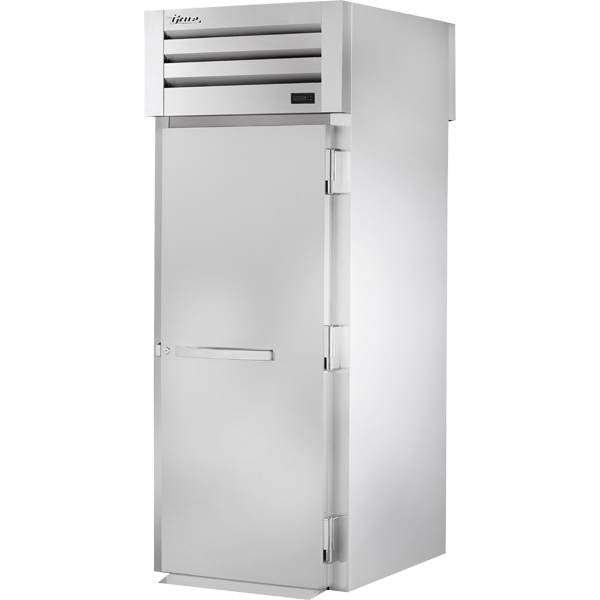

| Model | STG1HRT89-1S-1S |
| Door Count | 1 fr / 1 bk |
| Weight (lbs) | 450 |
| Weight (KG) | 205 |
| Dimensions | Imperial | Metric |
|---|---|---|
| Width | 35 | 889 |
| Depth | 37–1/2 | 953 |
| Height | 88–3/4 | 2255 |
| CORD LENGTH | 9 | 2.74 |
| Electrical | |
|---|---|
| Voltage | 115/208-230/60 |
| NEMA Configuration | 14-20P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
Design
- True’s solid door roll-thru heated cabinets are designed with enduring quality that protects your long term investment.
Heater System
- Cabinet designed to provide holding temperatures of 140°F to 180°F (60°C to 82.2°C). Heating system controlled by exterior on/off switch and electronic temperature control.
- Two (2) stainless steel (for corrosion resistance), finned tube heating elements (1000 watts each) for uniform generation of electric heat. Cabinet comes with a total of 2000 watts.Equipped with low-velocity fans to assure even temperature distribution throughout the cabinet. Fans are controlled by exterior on/off switch.
- Manually controlled vent located on top of the cabinet for positive humidity control.
Cabinet Construction
- Stainless steel breaker caps.
- Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- One (1) heavy gauge stainless steel ramp.
- Designed to accept roll-in racks (inboard castors) with maximum dimensions of 27"L x 29"D x 72"H (686 mm x 737 mm x 1829 mm)(supplied by others).
Doors
- Lifetime guaranteed bolt style door locks standard.
- Lifetime guaranteed heavy duty all metal working door handles.
- Positive seal self-closing doors with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, Three (3) per door section.
- Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.
Lighting
- Incandescent interior lighting; lights activated by exterior on/off switch, safety shielded.
Model Features
- Exterior, color coded, temperature display; accurate direct reading of internal cabinet temperature.
- Designed to hold warm baked or cooked food. Cabinet is not designed to heat ambient or cold product.
- Interior bumpers protect cabinet walls from abuse caused by roll-in carts.
- 12" x 20" (305 mm x 508 mm) pan for water included, if additional humidity is required.
- NSF/ANSI Standard 4 compliant for open food product.
Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115/208-240/60 Hz. single phase, 20 amp dedicated outlet. Cord and plug set included.
- NEMA 14-20R
Optional Features/accessories Upcharge And Lead Times May Apply.
- Hasp lock.
- Field reversible hinge.
- Stainless back. (STR, STA, STG)
- Security package.
Equipped with low-velocity fans to assure even temperature distribution throughout the cabinet. Fans are controlled by exterior on/off switch. Two (2) stainless steel 1000 watt finned tube heating elements per section for uniform generation of electric heat. Cabinet comes with a total of 2000 watts. Three (3) lifetime guaranteed, cam-lift hinges. Full 180° open capability with a stay open feature at 120°. Designed to accept roll-in racks (inboard castors) with a maximum dimension of 27"L x 29"D x 72"H (686 mm x 737 mm x 1829 mm). One (1) heavy gauge stainless steel ramp standard (per door). Entire cabinet structure and solid door are foamed-in-place using Ecomate. A high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
