| Specifications | |
|---|---|

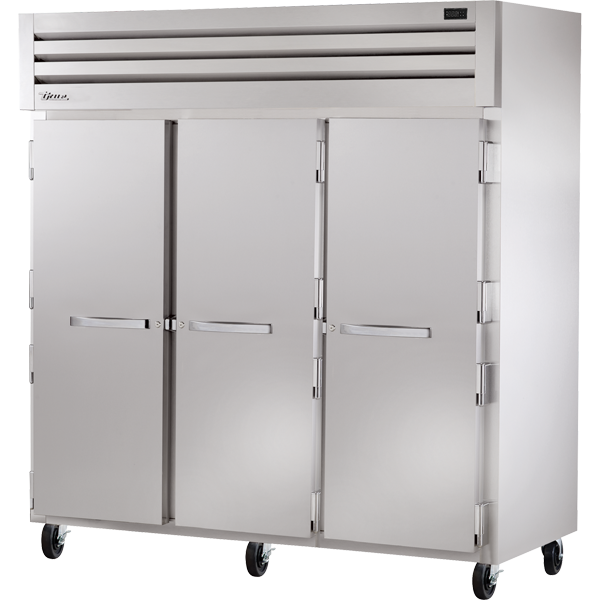

| Model | STA3R-3S-HC |
| Door Count | 3 |
| Shelf Count | 9 |
| Weight (lbs) | 770 |
| Weight (KG) | 350 |
| Dimensions | Imperial | Metric |
|---|---|---|
| Width | 77–3/4 | 1975 |
| Depth | 33–3/4 | 858 |
| Height | 77–3/4 | 1975 |
| CORD LENGTH | 9 | 2.74 |
| Electrical | |
|---|---|
| Amps | 6.1 |
| Voltage | 115/60/1 |
| NEMA Configuration | 5-15P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
Design
- True’s solid door reach-in’s are designed with enduring quality that protects your long term investment.
- Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs and exceptional food safety.
Refrigeration System
- Factory engineered, self-contained, expansion valve (TXV) system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
- High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
- State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
- Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity.
Cabinet Construction
- Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Doors
- Lifetime guaranteed bolt style door locks.
- Lifetime guaranteed heavy duty all metal working door handles.
- Positive seal self-closing doors with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, four (4) per door section.
- Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
Shelving
- Three (3) Heavy duty, chrome plated, wire shelves per section.
Lighting
- LED interior lighting, safety shielded.
Model Features
- Exterior digital temperature display, available with either °F or °C .
- Evaporator epoxy coated to eliminate the potential of corrosion.
- Curb mounting ready.
- NSF/ANSI Standard 7 compliant for open food product.
Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
- 115/60/1 NEMA-5-15R
Optional Features/accessories Upcharge And Lead Times May Apply.
- 6" (153 mm) standard legs.
- 6" (153 mm) seismic/flanged legs.
- 6" (153 mm) stainless steel legs.
- Hasp lock.
- Field reversible hinge.
- Additional shelves.
- Stainless back. (STR, STA, STG)
- Security package.
- 3–1/4" (83mm) castors
High capacity, factory balanced, refrigeration system holds 33°F to 38°F (.5°C to 3.3°C) for best food preservation in extreme conditions. Stainless exterior and aluminum side walls & back with stainless steel floor and ceiling. Three (3) Heavy duty, chrome plated, wire shelves per section. Positive seal self-closing doors with 120° stay open feature. Lifetime guaranteed door hinges. Lifetime guaranteed heavy duty all metal working door handles. Entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
