Equipped with low-velocity fans to assure even temperature distribution throughout the cabinet. Fans are controlled by exterior on/off switch. Two (2) stainless steel 1000 watt finned tube heating elements per section for uniform generation of electric heat. Cabinet comes with a total of 4000 watts. Three (3) lifetime guaranteed, cam-lift hinges. Full 180° open capability with a stay open feature at 120°. Designed to accept roll-in racks (inboard castors) with a maximum dimension of 27"L x 29"D x 66"H (686 mm x 737 mm x 1677 mm). One (1) heavy gauge stainless steel ramp standard (per door). Entire cabinet structure and solid door are foamed-in-place using Ecomate. A high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
| Specifications |
|
| Model |
STA2HRT-2S-2S |
| Door Count |
2 fr / 2 bk |
| Weight (lbs) |
760 |
| Weight (KG) |
345 |
| Dimensions |
Imperial |
Metric |
| Width |
68 |
1728 |
| Depth |
37–1/2 |
953 |
| Height |
83–3/4 |
2128 |
| CORD LENGTH |
9 |
2.74 |
| Electrical |
|
| Voltage |
115/208-240/60/1 |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
Design
▼

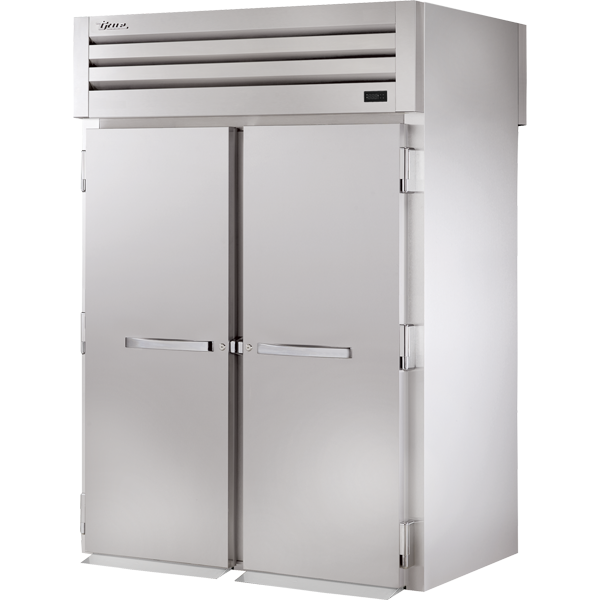

- True’s solid door roll-thru heated cabinets are designed with enduring quality that protects your long term investment.
Heater System
▼
- Cabinet designed to provide holding temperatures of 140°F to 180°F (60°C to 82.2°C). Heating system controlled by exterior on/off switch and electronic temperature control.
- Two (2) stainless steel (for corrosion resistance), finned tube heating elements (1000 watts each) for uniform generation of electric heat. Cabinet comes with a total of 4000 watts.Equipped with low-velocity fans to assure even temperature distribution throughout the cabinet. Fans are controlled by exterior on/off switch.
- Manually controlled vent located on top of the cabinet for positive humidity control.
Cabinet Construction
▼
- Stainless steel breaker caps.
- Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- One (1) heavy gauge stainless steel ramp per door.
- Designed to accept roll-in racks (inboard castors) with a maximum dimension of 27"L x 29"D x 66"H (686 mm x 737 mm x 1677 mm).
Doors
▼
- Lifetime guaranteed bolt style door locks standard.
- Lifetime guaranteed heavy duty all metal working door handles.
- Positive seal self-closing doors with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, Three (3) per door section.
- Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.
Lighting
▼
- Incandescent interior lighting; lights activated by exterior on/off switch, safety shielded.
Model Features
▼
- Exterior, color coded, temperature display; accurate direct reading of internal cabinet temperature.
- Designed to hold warm baked or cooked food. Cabinet is not designed to heat ambient or cold product.
- Interior bumpers protect cabinet walls from abuse caused by roll-in carts.
- 12" x 20" (305 mm x 508 mm) pan for water included, if additional humidity is required.
- NSF/ANSI Standard 4 compliant for open food product.
Electrical
▼
- Unit completely pre-wired at factory and ready for final connection to a 115/208/240/60 Hz. single phase, 20 amp dedicated outlet. Cord and plug set included.
- NEMA 14-20R
Optional Features/accessories Upcharge And Lead Times May Apply.
▼
- Hasp lock.
- Field reversible hinge.
- Stainless back. (STR, STA, STG)
- Security package.
