Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP). High capacity, factory balanced system that maintains 33°F to 38°F (.5°C to 3.3°C) in the refrigerator section and -10°F (-23.3°C) in the freezer section. Refrigerator located in left section; freezer on right section. Positive seal self-closing door with 120° stay open feature. Lifetime guaranteed door hinges. Lifetime guaranteed heavy duty chrome extruded door handles. Entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
| Specifications |
|

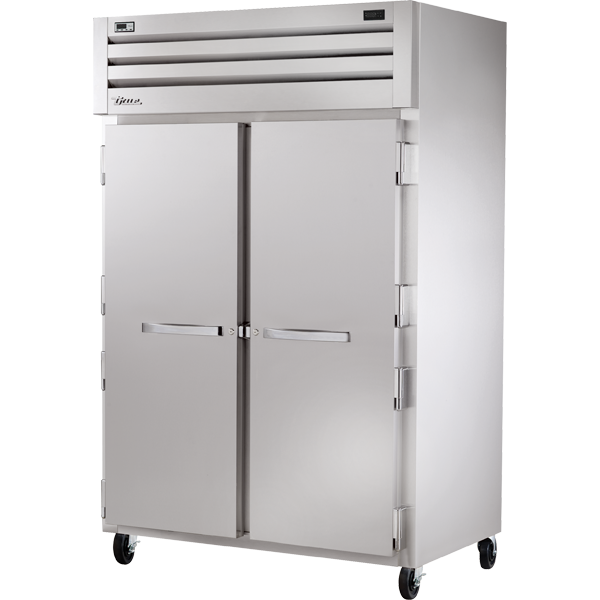

| Model |
STA2DT-2S-HC |
| Door Count |
2 |
| Shelf Count |
6 |
| Weight (lbs) |
725 |
| Weight (KG) |
329 |
| Dimensions |
Imperial |
Metric |
| Width |
52–5/8 |
1337 |
| Depth |
33–3/4 |
858 |
| Height |
77–3/4 |
1975 |
| CORD LENGTH |
9 |
2.74 |
| Electrical |
|
| Amps |
11.6 |
| Voltage |
115/60/1 |
| NEMA Configuration |
5-20P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
Design
▼
- True’s solid door reach-in’s are designed with enduring quality that protects your long term investment.
- Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs and exceptional food safety.
Refrigeration System
▼
- Two independent, self contained refrigeration systems; CFC free, environmentally friendly and factory balanced.
- R134A refrigerator refrigerant - R404A freezer refrigerant.
- High capacity, factory balanced system that maintains 33°F to 38°F (.5°C to 3.3°C) in the refrigerator section (Refrigerator on left side) and -10°F (-23.3°C) in the freezer section (Freezer on right side).
- State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
- Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity.
Cabinet Construction
▼
- Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Doors
▼
- Lifetime guaranteed bolt style door locks standard.
- Lifetime guaranteed heavy duty all metal working door handles.
- Positive seal self-closing doors with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, four (4) per door section.
- Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
Shelving
▼
- Three (3) Heavy duty, chrome plated, wire shelves per section.
Lighting
▼
- LED interior lighting, safety shielded. (STR/STA models standard, STG optional)
Model Features
▼
- Two (2) exterior digital temperature displays, one for refrigerator section and one for freezer.
- Evaporator epoxy coated to eliminate the potential of corrosion
- Curb mounting ready.
- NSF/ANSI Standard 7 compliant for open food product.
Electrical
▼
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 20 amp dedicated outlet. Cord and plug set included.
- 115/60/1 NEMA-5-20R
Optional Features/accessories Upcharge And Lead Times May Apply.
▼
- 6" (153 mm) standard legs.
- 6" (153 mm) seismic/flanged legs.
- 6" (153 mm) stainless steel legs.
- Hasp lock.
- Field reversible hinge.
- Additional shelves.
- Stainless back. (STR, STA, STG)
- Security package.
- 3–1/4" (83mm) castors
SHELVING KIT OPTIONS
