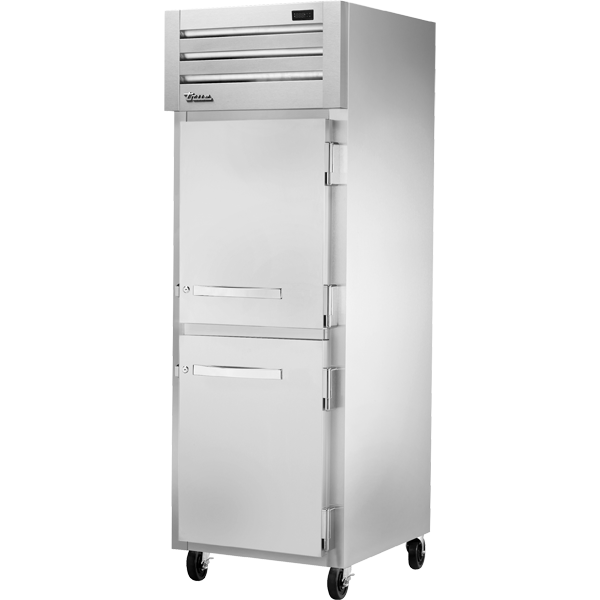

True Refrigeration STA1F-2HS-HC

$7,955.11

SKU: STA1F-2HS-HC

💰 Financing Available through Approve Payments

We offer flexible financing options to help you get the equipment you need now and pay over time. Fast approval and simple application process.

Apply for Financing

Tag:

Guaranteed safe checkout

Product Specifications Highlighted Features Downloads & Resources Reviews

Specifications
Model	STA1F-2HS-HC
Door Count	2
Shelf Count	3
Weight (lbs)	410
Weight (KG)	186

Dimensions	Imperial	Metric
Width	27–1/2	699
Depth	33–3/4	858
Height	77–3/4	1975
CORD LENGTH	9	2.74

Electrical
Amps	6.0
Voltage	115/60/1
NEMA Configuration	5-15P

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

Design ▼

True’s solid door reach-in’s are designed with enduring quality that protects your long term investment.
Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs and exceptional food safety.

Refrigeration System ▼

Factory engineered, self-contained, expansion valve (TXV) system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream.
State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity.

Cabinet Construction ▼

Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).

Doors ▼

Lifetime guaranteed bolt style door locks standard.
Lifetime guaranteed heavy duty all metal working door handles.
Positive seal self-closing doors with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, four (4) per door section.
Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.

Shelving ▼

Three (3) Heavy duty, chrome plated, wire shelves per section.

Lighting ▼

LED interior lighting, safety shielded.

Model Features ▼

Exterior digital temperature display, available with either °F or °C .
Evaporator epoxy coated to eliminate the potential of corrosion
Curb mounting ready.
NSF/ANSI Standard 7 compliant for open food product.

Electrical ▼

Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
115/60/1 NEMA-5-15R

Optional Features/accessories Upcharge And Lead Times May Apply. ▼

6" (153 mm) standard legs.
6" (153 mm) seismic/flanged legs.
6" (153 mm) stainless steel legs.
Hasp lock.
Field reversible hinge.
Additional shelves.
Stainless back. (STR, STA, STG)
Security package.
3–1/4" (83mm) castors

SHELVING KIT OPTIONS

Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs and exceptional food safety. Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP). High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream. Exterior – stainless steel doors, front, & sides. Interior – aluminum side walls & back. Stainless steel floor & ceiling. Three (3) Heavy duty, chrome plated, wire shelves per section. Positive seal self-closing door with 120° stay open feature. Lifetime guaranteed door hinges. Lifetime guaranteed heavy duty chrome extruded door handles. Entire cabinet structure and solid door are foamed-in-place using Ecomate. A high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
