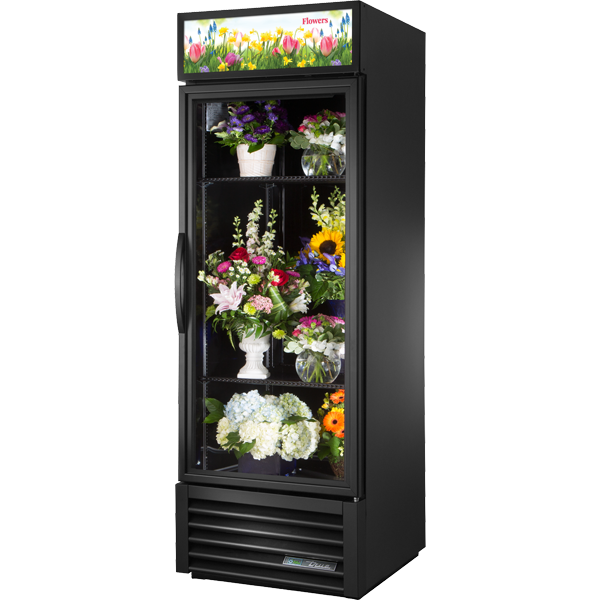

The world’s #1 manufacturer of glass door merchandisers. Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP). High capacity, factory balanced refrigeration system. Designed to accommodate a broad range of floral temperature settings, holds 35°F (1.6°C). Exterior – non-peel or chip black powder coated cold rolled steel; durable and permanent. Interior – attractive, black aluminum interior liner with stainless steel floor. Self closing door. Positive seal, torsion type closure system. “Low-E”, double pane thermal insulated glass door assembly with extruded aluminum frame. The latest in energy efficient technology. Adjustable, heavy duty black PVC coated shelves. LED interior lighting provides more even lighting throughout the cabinet. Safety shielded. Illuminated sign panel.
Bottom mounted units feature
- ”No stoop” lower shelf to maximize product visibility.
Storage on top of cabinet.
Easily accessible condenser coil for cleaning.
| Specifications |
|
| Model |
GDM-23FC-HC~TSL01 |
| Door Count |
1 |
| Shelf Count |
2 |
| Weight (lbs) |
300 |
| Weight (KG) |
137 |
| Dimensions |
Imperial |
Metric |
| Width |
27 |
686 |
| Depth |
29–7/8 |
759 |
| Height |
78–5/8 |
1998 |
| CORD LENGTH |
9 |
2.74 |
| Electrical |
|
| Amps |
5.4 |
| Voltage |
115/60/1 |
| NEMA Configuration |
5-15P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole
number).
DiseÑo
▼
Sistema De RefrigeraciÓn
▼
- Sistema auto contenido diseñado en fábrica que utiliza el refrigerante de hidrocarbono ecológico R290 que tiene un potencial de destrucción de la capa de ozono de cero (ODP) y muy bajo potencial de calentamiento global de tres (3) (GWP).
-
-
-
-
Construccion Del Gabinete
▼
- Exterior – Acero laminado en frío recubierto con pintura en polvo negra, no se pela o desconcha, durable y permanente.
Puerta
▼
Caracteristicas Del Modelo
▼
Especificaciones ElÉctricas
▼
- Unidad completamente pre-cableada en fábrica y lista para ser conectada a una fuente de 115/60/1 fase y 15 amperios. Juego de cable y enchufe incluidos.
- 115/60/1 NEMA-5-15R
