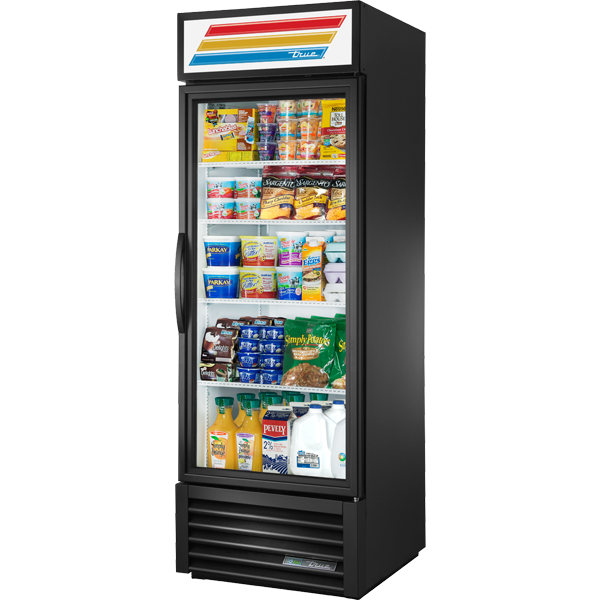

True Refrigeration GDM-23-HC~TSL01

$3,245.93

SKU: GDM-23-HC~TSL01

💰 Financing Available through Approve Payments

We offer flexible financing options to help you get the equipment you need now and pay over time. Fast approval and simple application process.

Apply for Financing

Tag:

Guaranteed safe checkout

Product Specifications Highlighted Features Downloads & Resources Reviews

Specifications
Model	GDM-23-HC~TSL01
Door Count	1
Shelf Count	4
Weight (lbs)	355
Weight (KG)	139

Dimensions	Imperial	Metric
Width	27	686
Depth	29–7/8	759
Height	78–5/8	1998
CORD LENGTH	9	2.74

Electrical
Amps	5.4
Voltage	115/60/1
NEMA Configuration	5-15P

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

Design ▼

True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in an attractive merchandiser that brilliantly displays packaged food and beverages.

Refrigeration System ▼

Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
Bottom mounted condensing unit positioned for easy maintenance. “No stoop” lower shelf maximizes visibility by raising merchandised product to higher level.

Cabinet Construction ▼

Exterior - non-peel or chip black powder coated cold rolled steel; durable and permanent.
Interior - attractive, white aluminum liner with stainless steel floor.
Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
Illuminated exterior sign panel. Variety of sign options available.

Door ▼

“Low-E”, double pane thermal insulated glass door assemblies with extruded aluminum frame. The latest in energy efficient technology.
Door fitted with 12” (305 mm) long extruded handle.
Self closing door. Positive seal, torsion type closure system.
Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.

Shelving ▼

Four (4) adjustable, heavy duty PVC coated wire shelves 22–9/16”L x 23–1/4”D (574 mm x 591 mm). Four (4) chrome plated shelf clips included per shelf.
Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2” (13 mm) increments.

Lighting ▼

LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.

Model Features ▼

Evaporator is epoxy coated to eliminate the potential of corrosion.
See our website www.truemfg.com for latest color and sign offerings.
Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.

Electrical ▼

Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
115/60/1 NEMA-5-15R

Optional Features/accessories Upcharge And Lead Times May Apply. ▼

230 - 240V / 50 Hz.
White exterior.
Stainless exterior (Changes door style to FGD01).
Black aluminum interior liner with black shelving.
Stainless steel interior liner with gray shelving.
6” (153 mm) standard legs.
6” (153 mm) seismic/flanged legs.
2–1/2" (64 mm) diameter castors.
4” (102 mm) diameter castors.
Red wine thermostat.
White wine thermostat.
Chocolate thermostat.
Barrel Locks – located in grill assembly (requires one per door)
Wine racks.
Sliding wine racks.
Additional shelves.
TrueFlex gravity feed organizers.
Pricing strips.

The world’s #1 manufacturer of glass door merchandisers. Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP). Exterior – non-peel or chip black powder coated cold rolled steel; durable and permanent. Interior – attractive, white aluminum interior liner with stainless steel floor. Self closing door. Positive seal, torsion type closure system. LED interior lighting provides more even lighting throughout the cabinet. Safety shielded. “Low-E”, double pane thermal insulated glass door assembly with extruded aluminum frame. The latest in energy efficient technology. Entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
