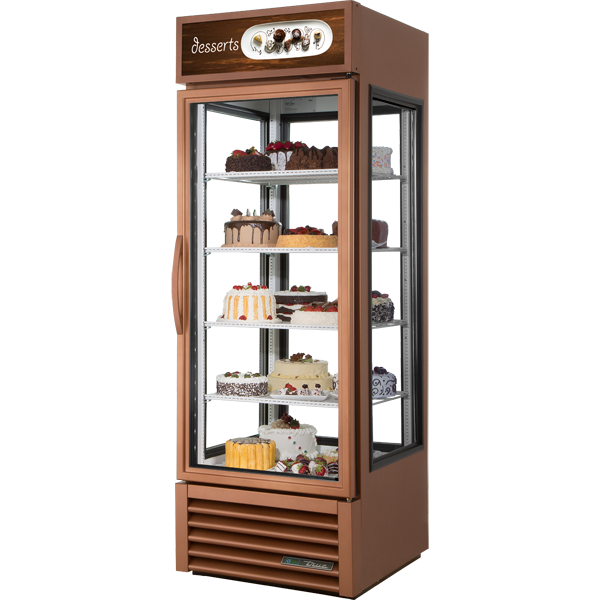

True Refrigeration G4SM-23-HC~TSL01

$6,818.49

SKU: G4SM-23-HC~TSL01

💰 Financing Available through Approve Payments

We offer flexible financing options to help you get the equipment you need now and pay over time. Fast approval and simple application process.

Apply for Financing

Tag:

Guaranteed safe checkout

Product Specifications Highlighted Features Downloads & Resources Reviews

Specifications
Model	G4SM-23-HC~TSL01
Door Count	1
Shelf Count	4
Weight (lbs)	355
Weight (KG)	162

Dimensions	Imperial	Metric
Width	27–1/2	699
Depth	30–1/8	766
Height	78–5/8	1998
CORD LENGTH	9	2.74

Electrical
Amps	5.4
Voltage	115/60/1
NEMA Configuration	5-15P

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

Design ▼

True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in a stylish merchandiser that creates a dynamic 360°product display.

Refrigeration System ▼

Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
Bottom mounted condensing unit positioned for easy maintenance; “no stoop” lower shelf maximizes visibility by raising merchandised product to higher level.

Cabinet Construction ▼

Exterior - attractive, non-peel or chip copper powder coated cold rolled steel ends with matching cabinet top and back; durable and permanent. Low-E, double pane thermal insulated glass sides and door assembly. The latest in energy efficient technology.
Interior - attractive, white aluminum interior liner with stainless steel floor.
Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
Illuminated exterior front sign panel. Variety of sign options available.

Door ▼

“Low-E”, double pane thermal insulated glass door assembly with extruded aluminum frame. The latest in energy efficient technology.
Door fitted with 12” (305 mm) long extruded handle.
Self closing door. Positive seal, torsion type closure system.
Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.

Shelving ▼

Four (4) adjustable, heavy duty, white PVC coated wire shelves 23–5/8”L x 20–7/8”D (601 mm x 531 mm). Four (4) chrome plated shelf clips included per shelf.
Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2” (13 mm) increments.

Lighting ▼

LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.

Model Features ▼

Evaporator is epoxy coated to eliminate the potential of corrosion.
See our website www.truemfg.com for latest color and sign offerings.
Complies with NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.
Complies with NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.

Electrical ▼

Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
115/60/1 NEMA-5-15R

Optional Features/accessories Upcharge And Lead Times May Apply. ▼

Black exterior.
White exterior.
Black aluminum interior liner.
6" (153 mm) standard legs.
6" (153 mm) seismic/flanged legs.
2–1/2" (64 mm) diameter castors.
4"(102 mm) diameter castors.
Red wine thermostat.
Chocolate thermostat.
White wine thermostat.
Barrel Locks – located in grill assembly (requires one per door)
Black shelves.

The world’s #1 manufacturer of glass door merchandisers. Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP). High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C). Exterior – attractive, high luster copper powder coated finish. Interior – attractive, white aluminum interior liner with stainless steel floor. LED interior lighting provides more even lighting throughout the cabinet. Safety shielded. Door is self closing with a positive seal, torsion type closure system. “Low-E”, double pane thermal insulated glass in door assembly, sides and rear. The latest in energy efficient technology. Illuminated exterior front sign panel.
