Hinge Bracket, Flange down, 3 bolt mounted, Pin , Bottom Right, NRE# 034620

  • $56.96
    Unit price per
Shipping calculated at checkout.

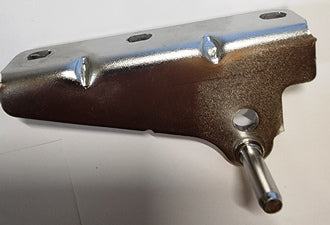

Bottom Right Hinge Plate With Pin , does not have 2nd stop pin


Overall Width Is 3-15/16", 3-Hole Mount
Left To Right Hole Spacing To Centers: 5/8" - 2-1/4" - 3-5/8"
Pin Center Is 3-3/16" From Left Edge
Pin Sets Out 1-5/8"
NOTE: With The Door Closed You Can See The Screws Holding
The Bracket To The Cabinet. (The Angle Turns Out)

NRE # 034620

Everest # DHG07-00
